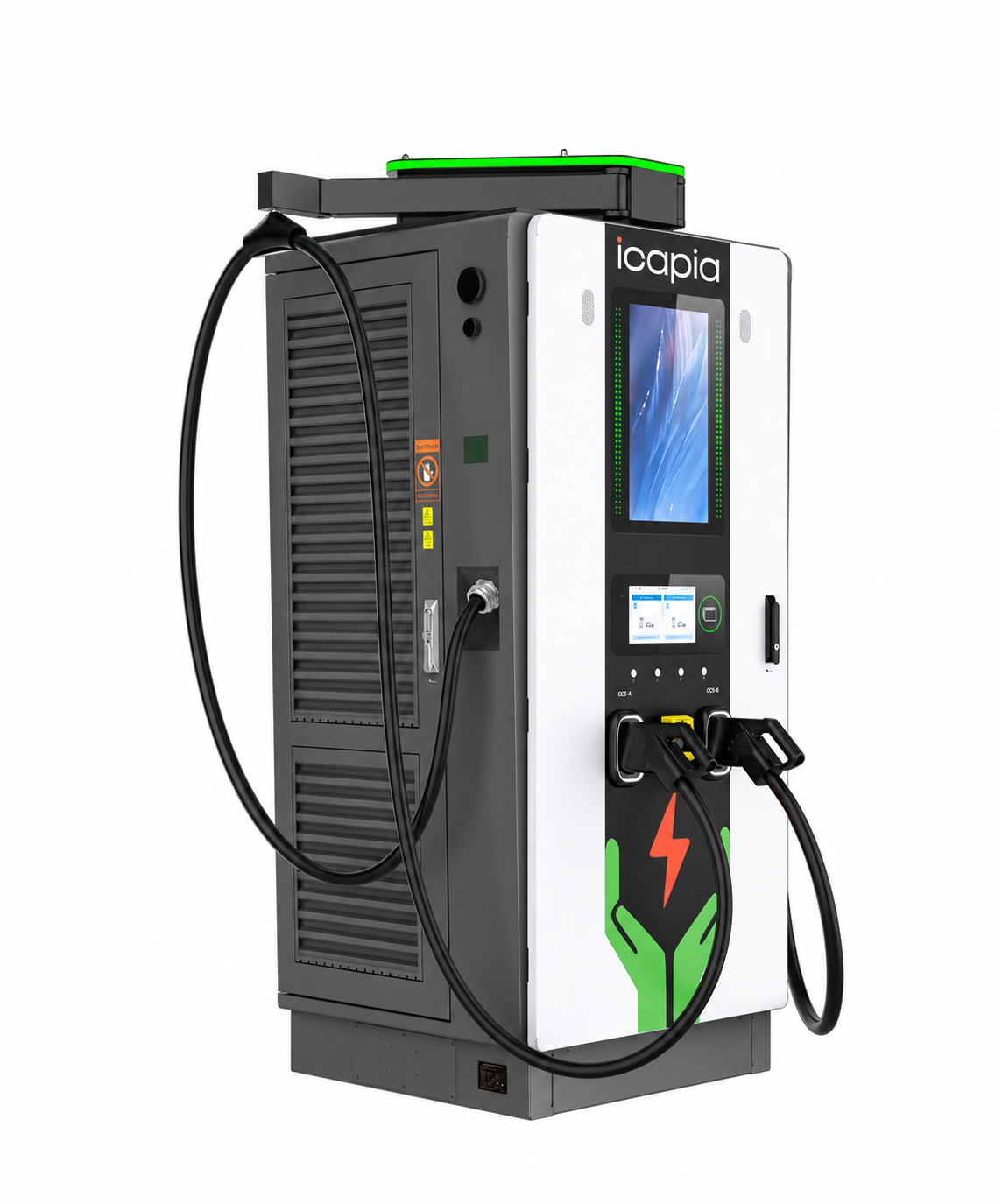

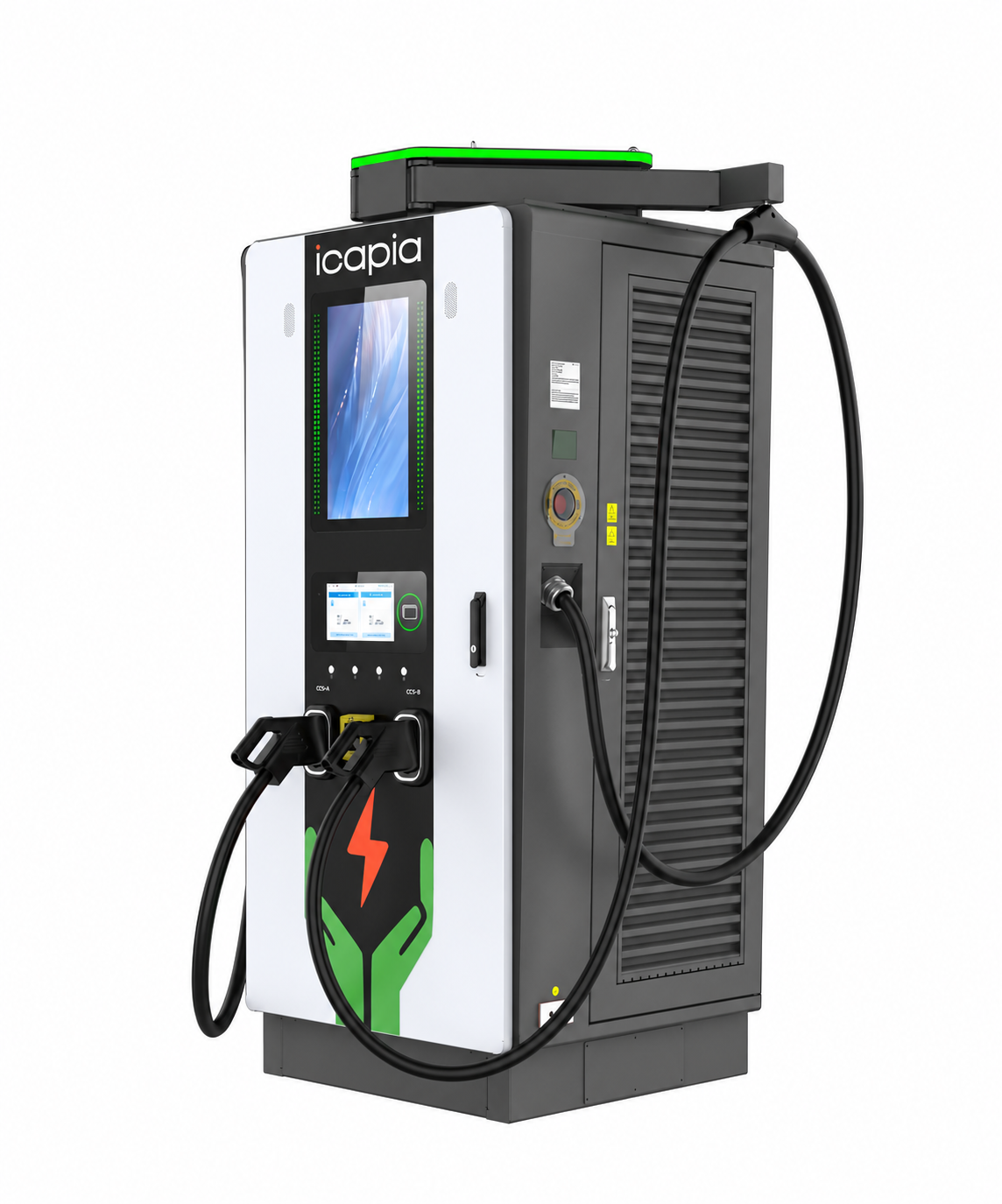

ULTRA Series
Ultra-high-power commercial DC charging in 240 kW and 360 kW configurations. ULTRA Series combines dual CCS1/NACS charging, integrated payment, ICAPIA CSMS management, cable management, a 10.1-inch touchscreen and a remotely managed 21.5-inch advertising display.
Single / Dual-Port Power
Charging Ports
Output Range
Boost Capability
Single / Dual-Port Power
Charging Ports
Output Range
Boost Capability
Description
Ultra-High-Power DC Charging
The ICAPIA ULTRA Series is an all-in-one Level 3 charging platform for highway corridors, travel centers, public charging hubs and high-throughput fleet depots. The two core configurations deliver 240 kW or 360 kW, with dual charging outlets and a wide 150–1000 VDC output range for broad vehicle compatibility.
Choose Your Power Level
| Model | Maximum Output | Charging Outlets | Typical Use |
|---|---|---|---|
| ULTRA 240 | 240 kW | Dual | Public hubs, fleets and travel centers |
| ULTRA 360 | 360 kW | Dual | Highway corridors and maximum-throughput sites |
Power Where It Is Needed
Boost-capable liquid-cooled cable configurations support up to 500A for demanding charging sessions. The 360 kW model can deliver full output to one vehicle or distribute power across two simultaneous sessions, including up to 180 kW + 180 kW operation.
Integrated Driver and Media Experience
A 10.1-inch touchscreen provides clear charging control, while the integrated 21.5-inch advertising display can show promotional or informational content updated remotely from cloud storage. Integrated cable management improves reach and keeps the site organized.
Complete Commercial Management
The ULTRA Series connects to the ICAPIA CSMS for load management, pricing schedules, remote monitoring, diagnostics, revenue and performance reporting and over-the-air updates. Wi-Fi, 4G and Ethernet are supported, together with app, RFID and direct card-payment access. CCS1 and NACS outlet configurations are available.
Additional information
| Power Configurations | 240 kW, 360 kW |
|---|---|
| Input Supply | 480 VAC ±10%, three-phase + N + PE, 50/60 Hz |
| Output Voltage | 150–1000 VDC |
| Charging Outlets | Dual outlet; CCS1 + CCS1, CCS1 + NACS, or NACS + NACS |
| Connectivity | Wi-Fi, 4G, Ethernet |
| Authentication | App, RFID card; POS machine optional |
| Displays | 10.1-inch LCD touchscreen; 21.5-inch advertising display |
| Network Protocol | OCPP 1.6J; upgradable to OCPP 2.0.1 |
| Cable Length | 16.4 ft standard; customizable up to 23 ft |
| Operating Temperature | -22°F to +122°F |
| Enclosure Rating | Type 3R |
| Certification | ETL, FCC, Energy Star |
