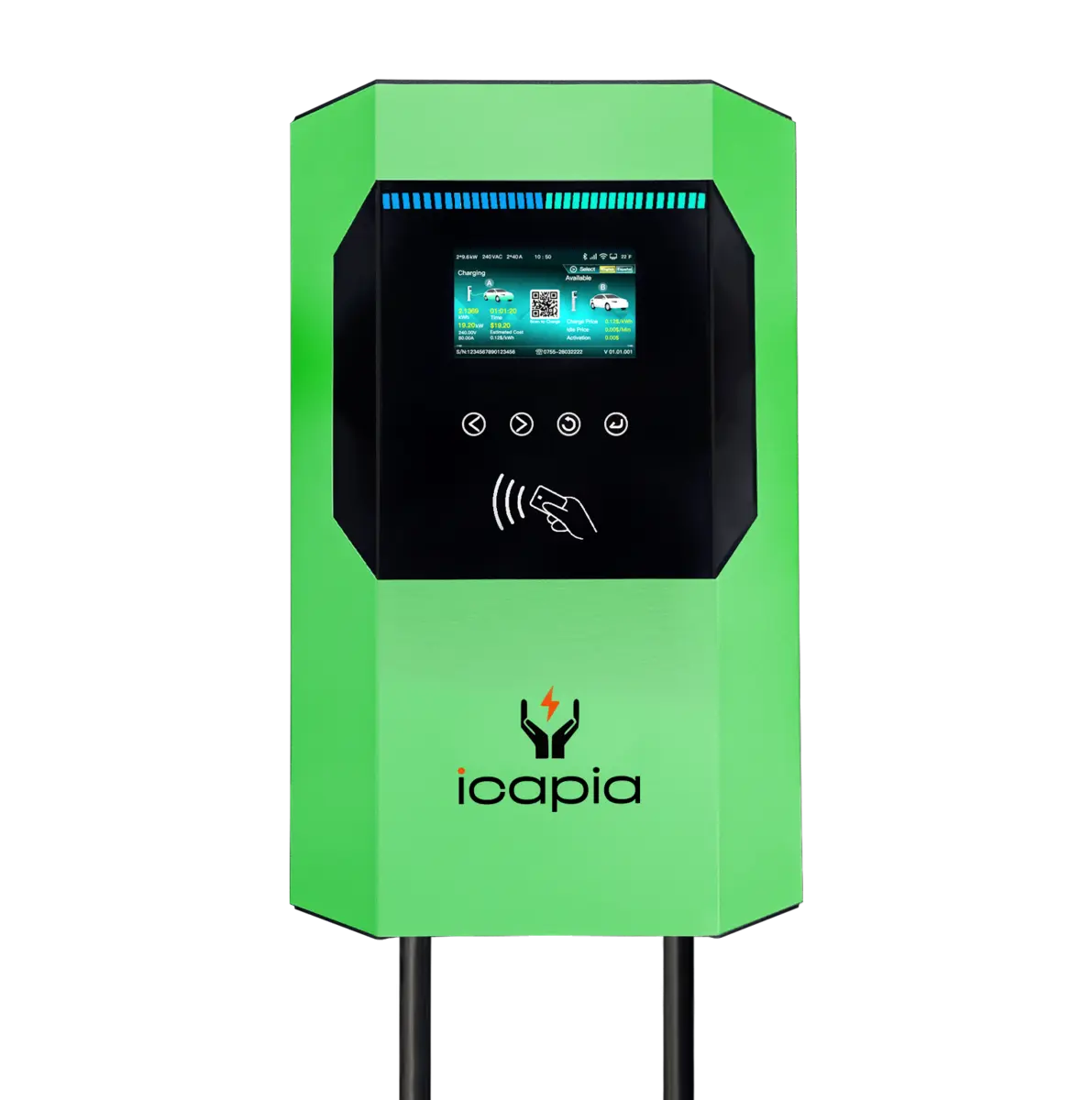

LS Series 80A
High-power commercial Level 2 charging for workplaces, multifamily properties, fleets, parking facilities and public sites. Choose the single-port LS80, dual-port LS4040 or power-sharing LS4080, with up to 19.2 kW total output, J1772 or NACS connectors and remote management through the ICAPIA CSMS.
Maximum Power
Maximum Current
Charging Port
LCD Display
Maximum Power
Maximum Current
Charging Ports
LCD Display
Maximum Power
Maximum Current
Charging Ports
LCD Display
Description
Commercial Level 2 Power, Configured for Your Site
The ICAPIA LS Series delivers up to 19.2 kW of commercial Level 2 charging in a rugged metal enclosure. Choose a dedicated 80A single-port charger, two simultaneous 40A ports, or a flexible dual-port configuration that directs the available power where it is needed.
Choose Your Configuration
| Model | Connectors | Output | Best For |
|---|---|---|---|
| LS80 | Single | Up to 80A / 19.2 kW | Maximum power for one vehicle |
| LS4040 | Dual | 40A + 40A / 19.2 kW total | Two vehicles charging simultaneously |
| LS4080 | Dual | 80A single or 40A + 40A dual / 19.2 kW total | Flexible single- and dual-vehicle use |
Connected Site Management
Every model connects to the ICAPIA CSMS for remote monitoring, diagnostics, reporting, pricing controls, scheduled charging, site load management and over-the-air firmware updates. OCPP 1.6J support also makes the LS Series ready for networked commercial deployments.
Flexible Driver Access
Drivers can authenticate by RFID or QR code through the mobile app. SAE J1772 and NACS connector options are available, and optional payment-terminal configurations support direct card payment without requiring an app.
Built for Commercial Sites
The Type 4, IK08-rated metal enclosure, bright 4.3-inch display and wide operating range are designed for workplaces, fleets, multifamily properties, parking facilities and public charging sites. An optional pedestal with dual cable management is available separately.
Additional information
| Models | LS80; LS4040; LS4080 |
|---|---|
| Maximum Output | 19.2 kW total |
| Port Configurations | LS80: 1 × 80A; LS4040: 2 × 40A; LS4080: 1 × 80A or 2 × 40A with dynamic power sharing |
| Input | 208/240 VAC; 50/60 Hz; hardwired L1/L2/GND |
| Vehicle Connectors | SAE J1772 Type 1 or NACS |
| Connectivity & Protocol | LAN (RJ-45); 4G Cat. 4; Wi-Fi 2.4 GHz; USB Type-A; OCPP 1.6J |
| Display & Access | 4.3-inch LCD (800 × 480, 900 nit); RGB status bar; RFID; QR code/app |
| Enclosure & Environment | Type 4; IK08; operating -30 to 50 °C (-22 to 122 °F); up to 95% non-condensing |
| Dimensions & Weight | 11.25 × 20 × 6.2 in (H × W × D); LS80: 32.4 lb; LS4040: 35.2 lb; LS4080: 46.3 lb |
| Certifications & Warranty | ETL; UL 2231; UL 2594; UL 1998; UL 991; Energy Star; FCC/IC; 3-year warranty |
