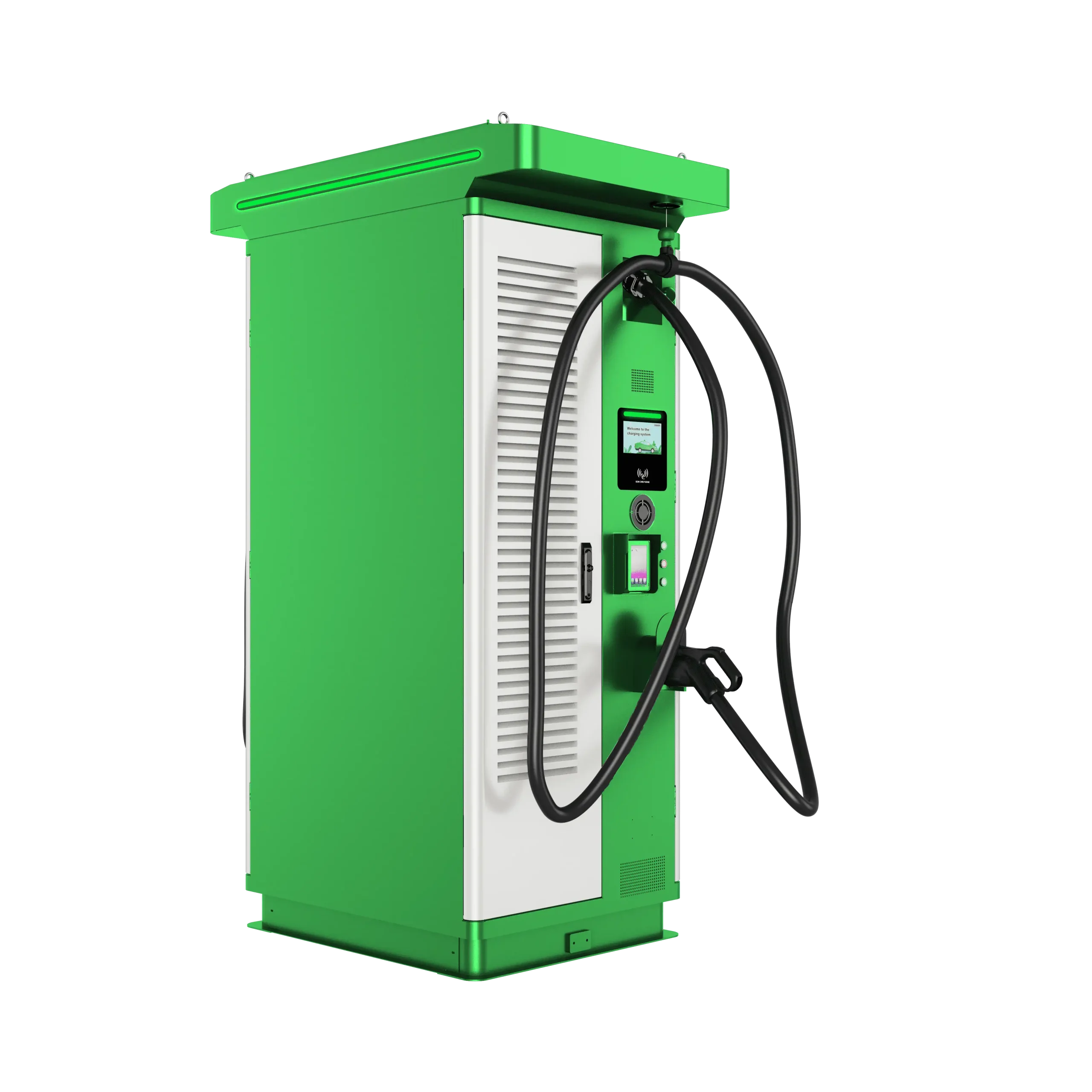

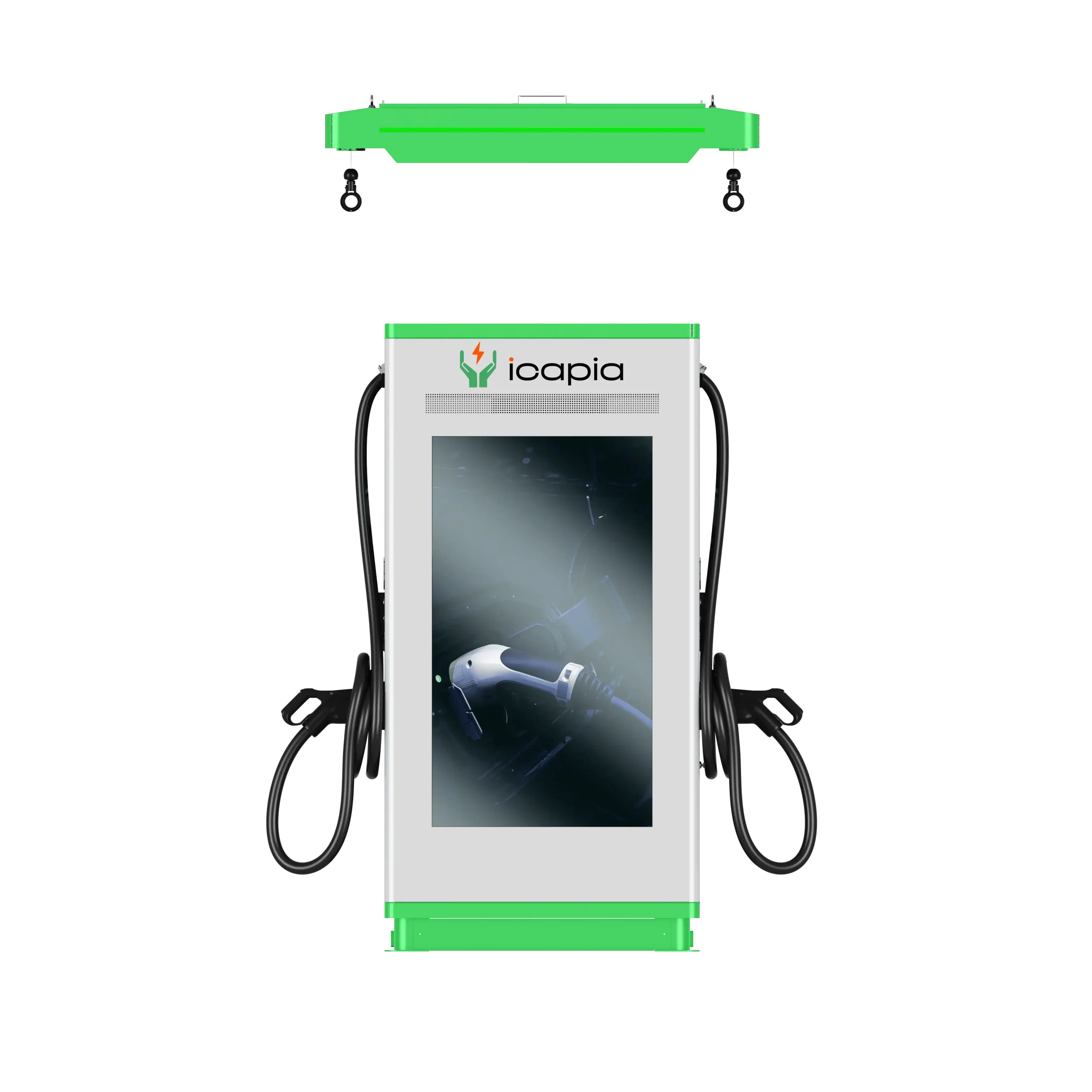

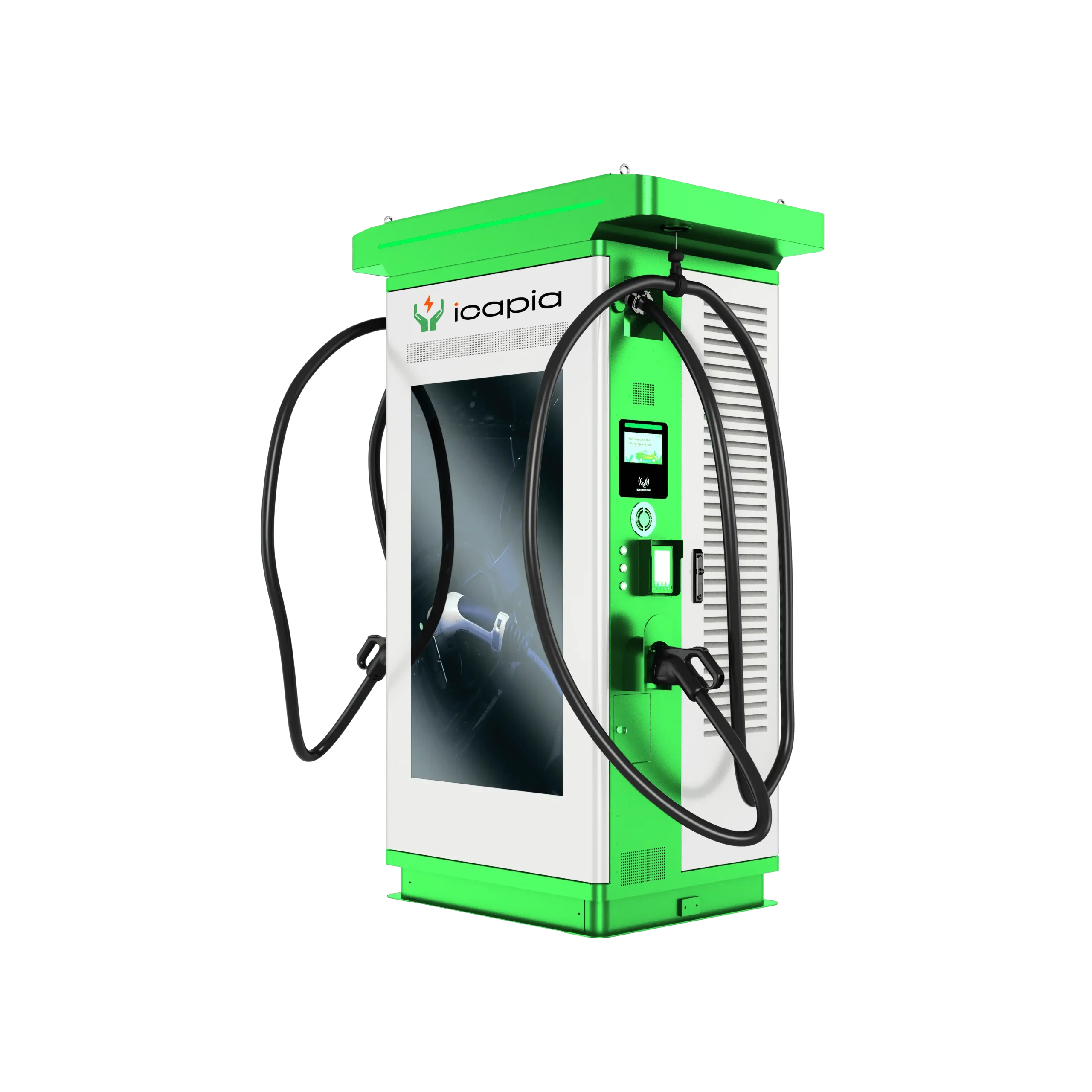

ICDCIFC-240kW

Revolutionary DC Charging Stations for Commercial Use.

Transform your business with our cutting-edge electric vehicle charging solution. The advanced 380V DC charging stations are engineered to meet the rigorous demands of commercial environments, offering unparalleled performance and reliability for modern EV fleets. Equipped with a dual-gun system, each station enables simultaneous charging for two vehicles, delivering power outputs ranging from 60kW to an impressive 180kW. This innovative design maximizes operational efficiency while ensuring rapid and safe charging for all compatible electric vehicles.

Description

Key Features:
  • Unprecedented Charging Speeds: Propel your charging capabilities to new heights with outputs 240kW, offering some of the fastest Level 3 charging speeds available. Reduce charging times significantly and enhance the overall user experience.
  • Dual-Gun Design: Maintain the convenience of dual charging guns per station, allowing simultaneous charging for two electric vehicles. This feature ensures optimal utilization of the charging infrastructure.
  • Seamless Integration: Connect these DC chargers to our proprietary software and cloud platform, ensuring centralized control over your charging infrastructure. Utilizing the OCPP protocol, you can effortlessly manage charging sessions and receive secure payments from users.
  • ICAPIA EV Platform Compatibility: Extend the reach of your charging network by integrating these high-speed chargers into the ICAPIA EV platform. Provide users with a cohesive and user-friendly experience while contributing to the growth of your electric vehicle charging ecosystem.
  • Transform the charging experience with our Ultra-Fast Level 3 DC Charging Stations, delivering unmatched speed and performance to meet the evolving needs of electric vehicle users and commercial charging operators.

Specification

Weight
19 kg
Dimensions
11 × 6.5 × 17 cm
Rated Voltage

380V (three-phase)

Rated Power

240kW

Input frequency

50/60Hz

Max. output current

40A/48A

LCD

Yes

Ethernet/WIFI/4G/Bluetooth

Opt

RCD

Type A

Intelligent power adjustment

Yes

RFID

Yes

ARP

Yes

Protection degree

IP 55

Environment temperature

-25°C ~ +55°C

Relative humidity

0-95% non-condensing

Maximum altitude

<2000m

Cooling

Natural air cooling

CERTIFICATE

CE, FCC, IP55, ETL

Model:

ICDCIFC 240kW

Connector:

Type 1 (J17782), NACS (Tesla)

Mount:

Wall Mount, Standard Pedestal, Enhanced Pedestal, Enhanced Pedestal with Cable Management
