OPAL-FRONT

ICAPIA OPAL



The ICAPIA OPAL delivers high-quality Level 2 EV charging with powerful 11.5 kW performance and sleek, seamless integration for multifamily, fleet, and commercial spaces. It comes with an included wall-mount kit and an optional pedestal configuration, offering an affordable, cost effective solution that qualifies for local and federal incentives and rebates while combining style, functionality, and flexibility.

Shop now
Features

The ICAPIA OPAL delivers a truly reliable commercial solution for any public setting, including retail, multifamily apartments, workplaces, parking structures, and more. With Cloud Management Services, owners and clients can manage charging through dedicated apps, while advanced safety features and flexible connectivity ensure optimal performance and peace of mind.

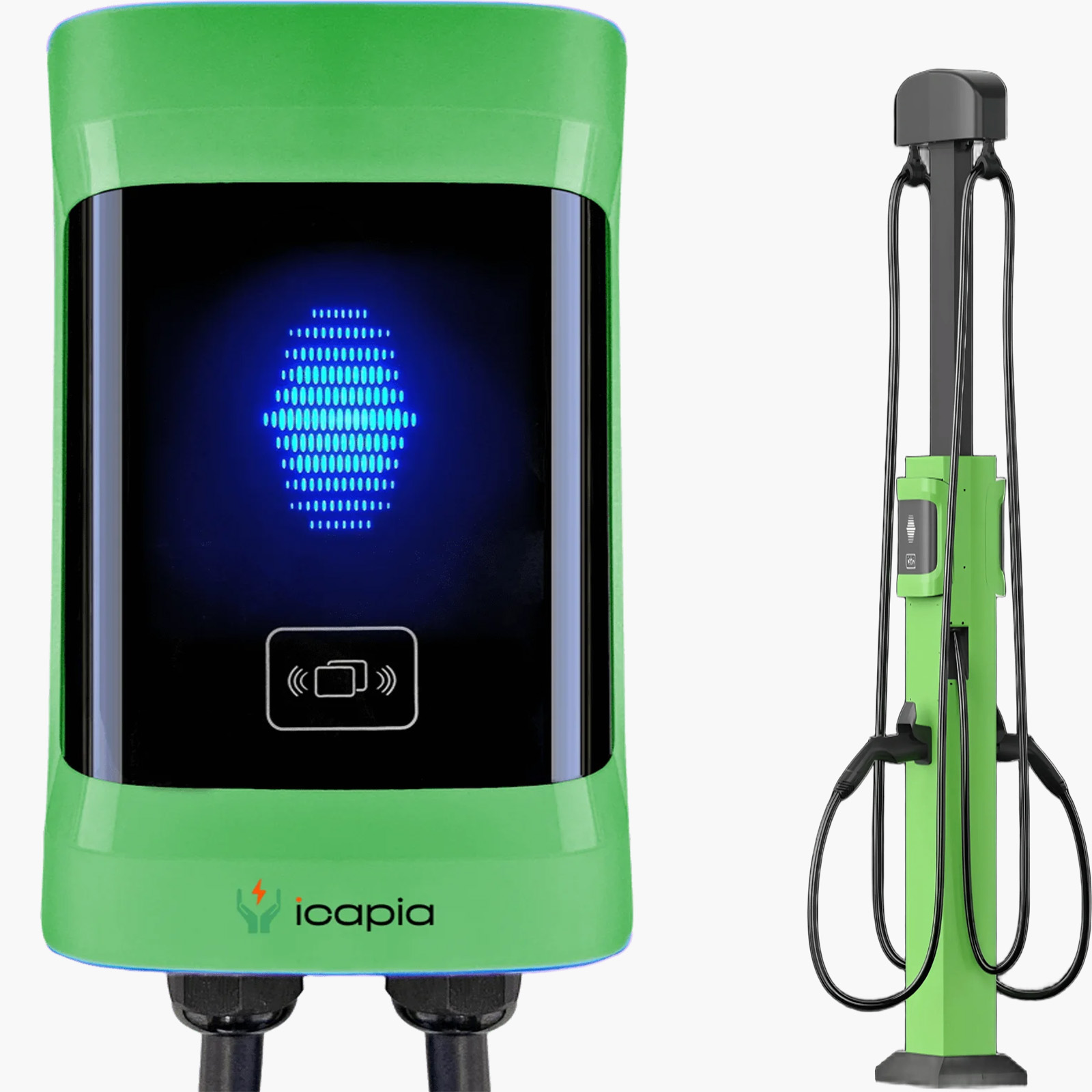

Choose the setup that works best for you. Plug in via the 14-50 NEMA connector for convenience, or hardwire for maximum power and a sleek, integrated appearance. Wall-mount or optional dual unit pedestal configuration let commercial properties maximize EV charging capacity per parking spot.



Managed through the ICAPIA Charging Management Services (CSMS), the OPAL makes monitoring, control, and reporting simple.

Specifications
Power Output

11.5 kW

Voltage

240V

Input Frequency

50/60 Hz

Max. Output Power

9.6 kW NEMA, 11.5 kW Hardwire

Max. Output Current

40A NEMA, 48A Hardwire

Internet Connection

Wi-Fi (2.4 GHz)

LCD Screen

No

RCD

–

LED Indicator

Yes

Intelligent Power Adjustment

Yes

RFID Support

Yes

ARP

–

Protection Degree

NEMA 4

Environment Temperature

-13°F ~ +131°F

Relative Humidity

0-95% non-condensing

Maximum Altitude

<2000m

Cooling

Naturally Air Cooled

Wall-Mount Kit Included

Yes

Certificates

ETL, FCC, Energy Star, NTEP

Cable Length

25 ft
