LS Series

Level 2 Commercial EV Chargers

The LS Series EV chargers offer scalable, revenue-ready Level 2 charging for public and private spaces. Designed for performance, reliability, and profitability, they make it easy for property owners to generate consistent income.

Variants:

LS80: Single-port, 19.2 kW
LS4040: Dual-port, two simultaneous 9.6 kW charges
LS4080: Dual-port, 19.2 kW to one vehicle or 9.6 kW each

All units feature automated load balancing, cloud management, and ICAPIA app payment for seamless revenue collection. Track usage, set pricing, and maximize returns while providing fast, dependable charging.

Perfect for…

Commercial & Retail: Malls, parking garages, and retail centers can attract EV drivers and add revenue.

Hospitality: Hotels and resorts can offer convenient pay-per-charge options.

Multifamily: Apartments, HOAs, and condos can provide resident charging and offset infrastructure costs.

Workplaces: Businesses can offer paid charging to employees and visitors.

Municipal/Public Sites: Cities, schools, and transit hubs can provide charging services while funding sustainability initiatives.

Technical Specifications
Connector Types	SAE J1772, NACS
Charge Cable Length	25 ft. (7.6m)
Input Electrical Ratings	Voltage: Single-phase, 240 VAC, 60 Hz Breaker Rating: 100 A Power: 19.2 kW @ 240 VAC
Output Electrical Ratings	Voltage: 240 VAC, 60 Hz Maximum Current: 80 A Maximum Power: 19.2 kW @ 240 VAC
Network Connectivity	LAN, Wi-Fi (2.4 GHz), 4G SIM
Session Authentication	RFID Card, ICAPIA App
Display	LED Screen (4.3 in.)
Network Protocol	OCPP 1.6J
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Maintenance	Over-the-air (OTA) firmware updates

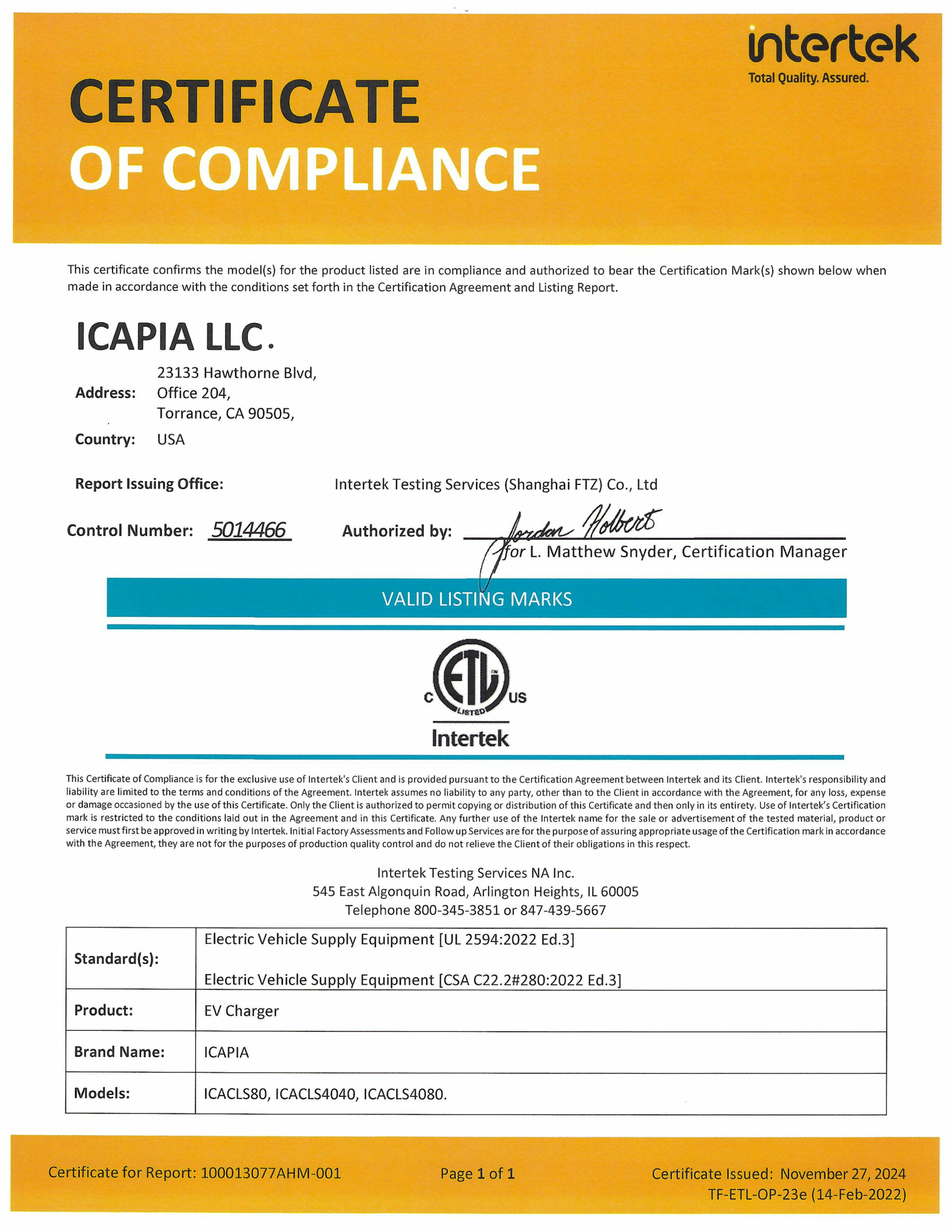

Certifications	NTEP, ETL, FCC, ENERGY STAR®

📄 ICAPIA LS Series EV Charger – Spec Sheet & User Manual
