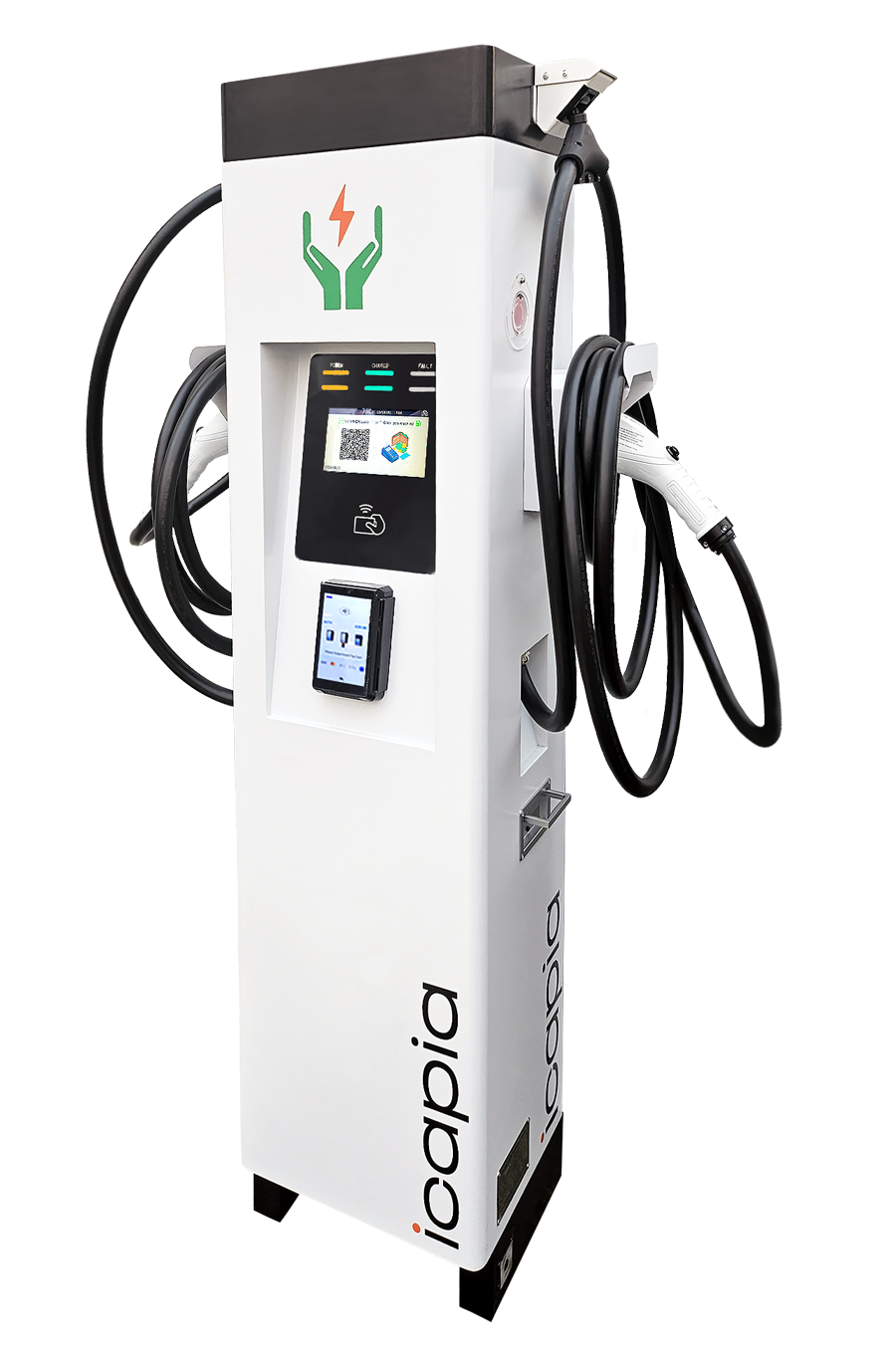

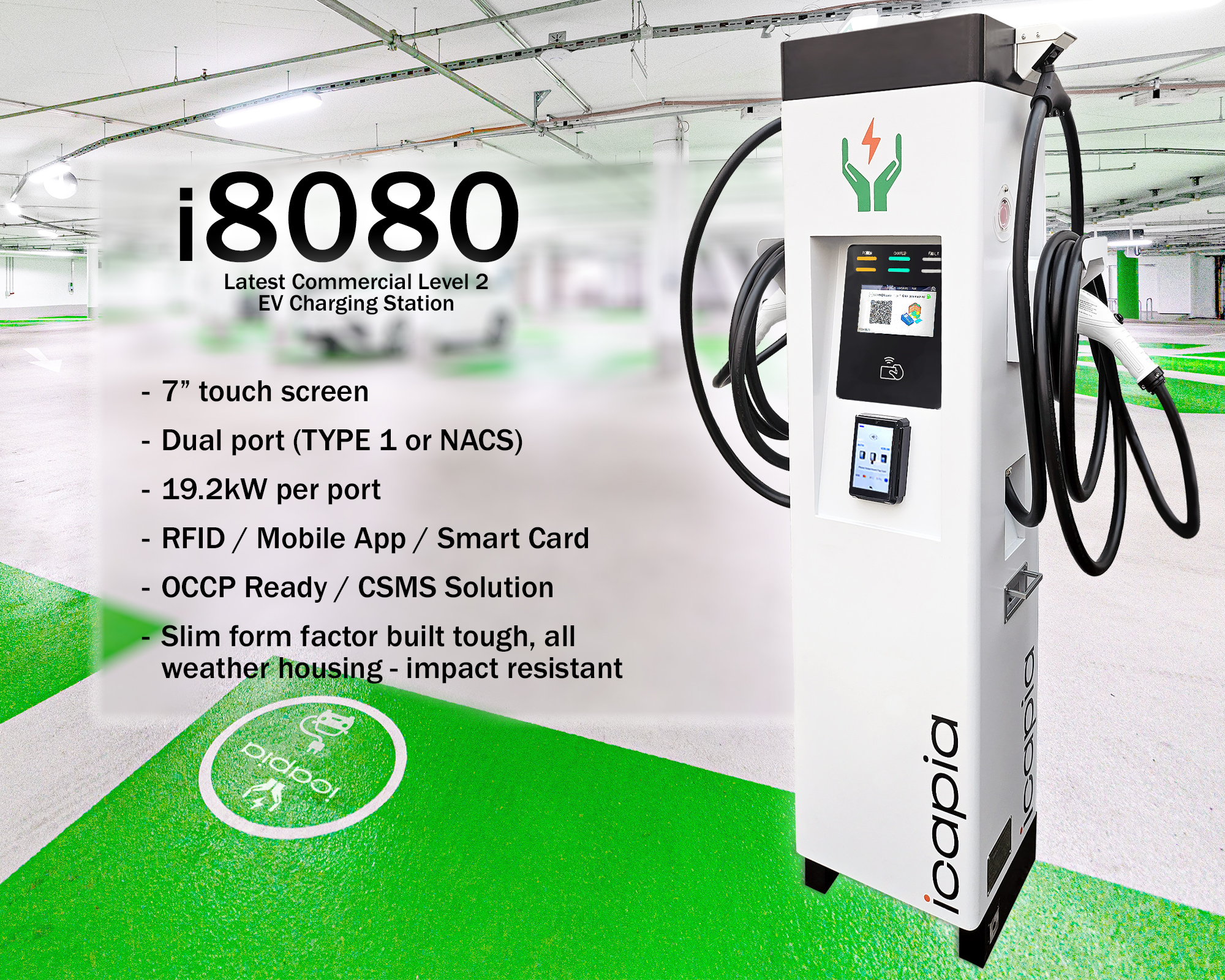

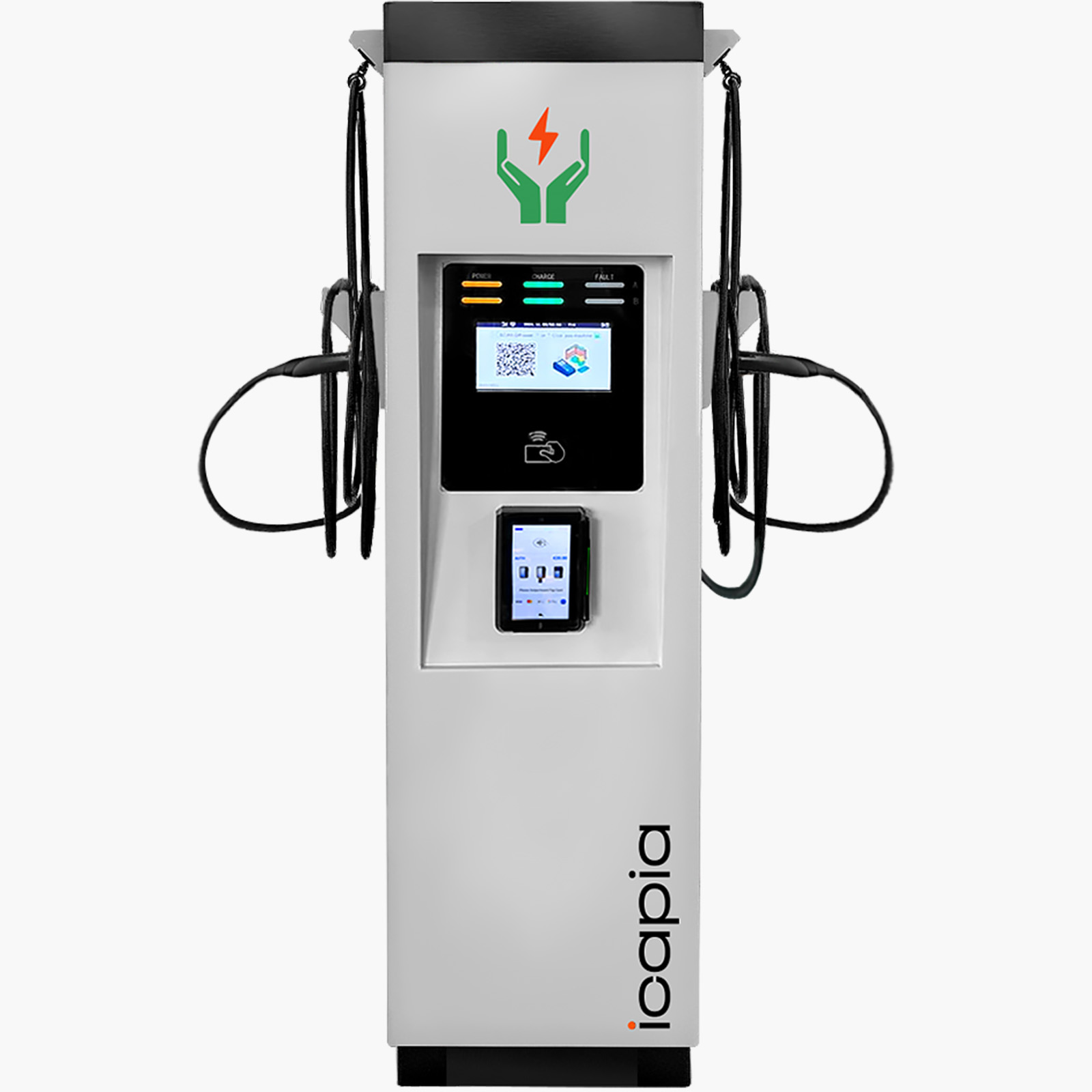

I8080

The Fastest AC Charging in the USA

The I8080 delivers the fastest AC dual-charging speeds in the nation, making it ideal for public and private parking. Powered at 240V, this high-performance Level 2 station provides up to 38.4 kW total output, with 19.2 kW per port, allowing two EVs to charge simultaneously at maximum efficiency.

Key Features:

Dual-port, 19.2 kW per vehicle

38.4 kW total output

Cloud-based management & automated load balancing

Seamless ICAPIA app payment for revenue collection

Applications

Commercial & Retail: Draw more visitors while creating new income streams.

Hospitality: Offer premium charging for guests and travelers.

Multifamily: Provide residents with high-speed charging while offsetting infrastructure costs.

Workplaces: Enable paid charging for employees and visitors.

Municipal/Public Sites: Support community charging and fund sustainability programs.

Technical Specifications
Connector Types	SAE J1772, NACS
Charge Cable Length	25 ft. (7.6m)
Input Electrical Ratings	Voltage: Single-phase, 240 VAC, 60 Hz Breaker Rating: 200 A Power: 38.4 kW @ 240 VAC
Output Electrical Ratings	Voltage: 240 VAC, 60 Hz Maximum Current: 80 A * 80 A Maximum Power: 19.2 kW * 19.2 kW @ 240 VAC
Network Connectivity	LAN, 4G SIM
Session Authentication	RFID Card ICAPIA App Credit & Debit Card
Display	LED touchcreen (7 in.)
Network Protocol	OCPP 1.6J
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Maintenance	Over-the-air (OTA) firmware updates
Certifications	ETL, FCC, ENERGY STAR® (NTEP In-Progress)

📄 I8080 – Product Spec Sheet
